Product detail

Tubing tong ∥XQ89 (3500 Series)

Tubing tong ∥XQ89 (3500 Series)

Parameter description:
Tubing tong ∥XQ89 (3500 Series)

Technical Parameter:


** Range of master tong is 60-89mm(2-3/8-3-1/2 inch)

** Range of backup tong is 60-114mm(2-3/8-4-1/2 inch)

**High Gear Rated of Torque: 1100 N.m (810 ft-ibs)

**Low Gear Rated  of Torque: 3000 N.m (2210 ft-ibs)

**High Gear Rated Speed: 100 RPM

**Low Gear Rated Spped :30 RPM
**Rated Operation Pressure 10MPa (1450 psi) Of the largest oil supply 80 r/min

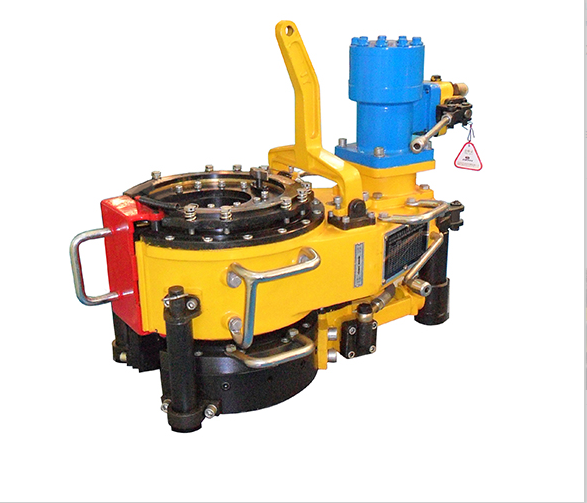

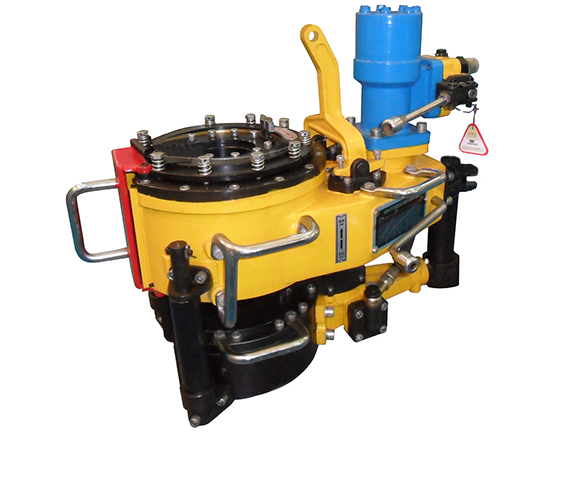

                         XQ89/3B                                                                            XQ89/3C



This series power tong is used for quick make-up/break-out 2 3/8″、2 7/8″、3 1/2″tubing in well service
Operations.The tongs have the following features

Clamp the tubing use corresponding dies,jaw set

Torque control valve may be equipped(optional)

Choose and buy lengthening guide pole assembly,the backup tong can clamp the tubing body

Torque Control System may be equipped (optional)
