Tubing tong ∥XQ114 (4500 Series)
Technical Paramters:
**Range of master tong is 73-114mm(2-7/8-4-1/2 inch)
**Range of backup tong is 73-141.50mm(2-7/8-5-9/16 inch)
**High Gear Rated of Torque: 1500 N.m (1106 ft-ibs)
**Low Gear Rated of Torque: 6000 N.m (4400 ft-ibs)
**High Gear Rated Speed: 85 RPM
**Low Gear Rated Spped :20 RPM
**Rated Operation Pressure 11MPa (1740 psi) Of the largest oil supply 100 r/min
.png)

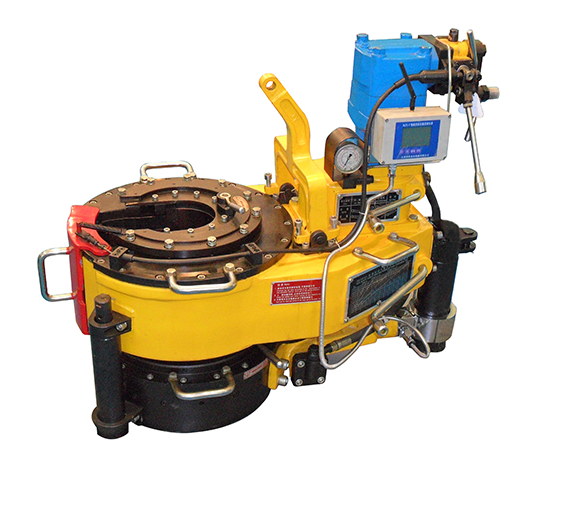

XQ114/6B(6YB)
This series power tong is used for quick make-up/break-out 2 7/8″、3 1/2″、4 1/2″tubing in well service operations. the tongs have the following features
◎Clamp the tubing use corresponding dies,jaw set. 2 3/8″jaws are offered
◎Torque control valve may be equipped(optional)
◎Choose and buy lengthening guide pole assembly,the backup tong can clamp the tubing body
◎Torque Control System may be equipped (optional)
|
