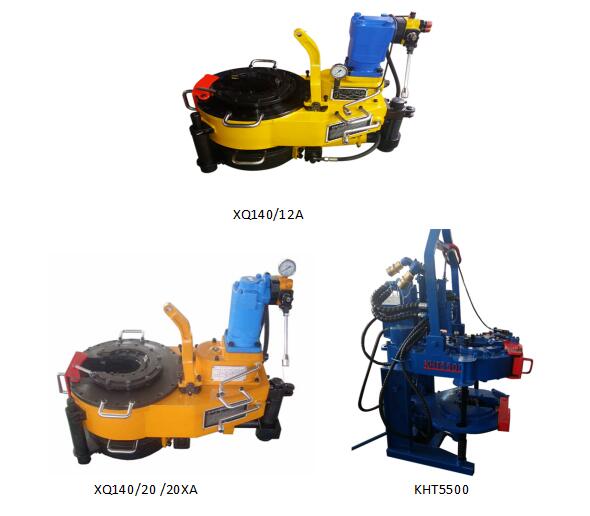

Model
|
XQ140/12A
|
XQ140/20
|
KHT5500
|
|
Pipe size of master tong
|
mm
|
73-140
|
73-140
|
60-140
|
|
in
|
2 7/8"-5½"
|
2 7/8"-5½"
|
2 3/8"-5½"
|
|
Pipe size of backup tong
|
mm
|
73-156
|
73-156
|
60-165
|
|
in
|
2 7/8"-61/8"
|
2 7/8"-61/8"
|
2 3/8"-6 1/2"
|
|
Higear rated torque
|
kN.m
|
2.6
|
2.4
|
3.4
|
|
lbf.ft
|
1900
|
1770
|
2500
|
|
Lowgear rated torque
|
kN.m
|
12
|
20
|
27
|
|
lbf.ft
|
8850
|
14750
|
20000
|
|
Higear rated speed
|
R/min
|
72
|
76
|
78
|
|
Lowgear rated speed
|
R/min
|
14
|
9
|
9.5
|
|
Rated operation pressure
|
MPa
|
12
|
12
|
14
|
|
psi
|
1740
|
1740
|
2000
|
|
Rated.flow
|
L/min
|
120
|
120
|
150
|
|
gpm
|
32
|
32
|
40
|
|
Dimension
|
mm
|
1031×621×841
|
1147×630×875
|
1220X860X1708
|
|
Dimension
|
in
|
40.8"×24.4"×33.1"
|
45.1"×24.8"×34.4"
|
48"×33.9"×67.3"
|
|
Weight(including backup tong)
|
kg
|
490
|
560
|
950
|
|
lb
|
1080
|
1146
|
2090
|
This series power tong is used for quick make-up/break-out 2 7/8″、3 1/2″、4 1/2″tubing, 4 1/2″、5 1/2″casing, 2 3/8″、2 7/8″、3 1/2″drill pipe in well service Operations.The tongs have the following features
◎Clamp the tubing use corresponding die,special die seat and dies can be custom-made
◎Torque control valve may be equipped(optional)
◎Choose and buy lengthening guide pole assembly,the backup tong can clamp the tubing body.
◎Torque Control System may be equipped (optional)
|
