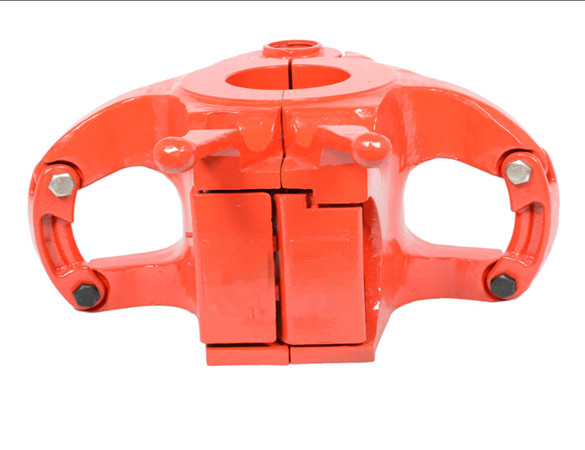

Elevators Type TA
|
|
Parameter description：
|
Model TA center latch elevators with square shoulder are suitable for handing,drill collar,casing and tubing. The Elevators are designed and manufactured according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment.
Main Technical Paramters
|
Model
|
Size (in)
|
Rated Cap. (short tons)
|
|
DC
|
Tubing
|
Casing
|
|
NU
|
EU
|
|
TA-35
|
2 7/8-3 1/8
|
1.05-2 7/8
|
1.05-2 7/8
|
/
|
35
|
|
TA-65
|
2 7/8-3 1/8
|
1.66-2 7/8
|
1.66-2 7/8
|
/
|
65
|
|
TA-100
|
3 1/8-5 1/4
|
2 3/8-5
|
2 3/8-4 1/2
|
/
|
100
|
|
TA-150
|
2 7/8-3 1/8
|
/
|
/
|
4 1/2-10 3/4
|
150
|

|
|
|
|
